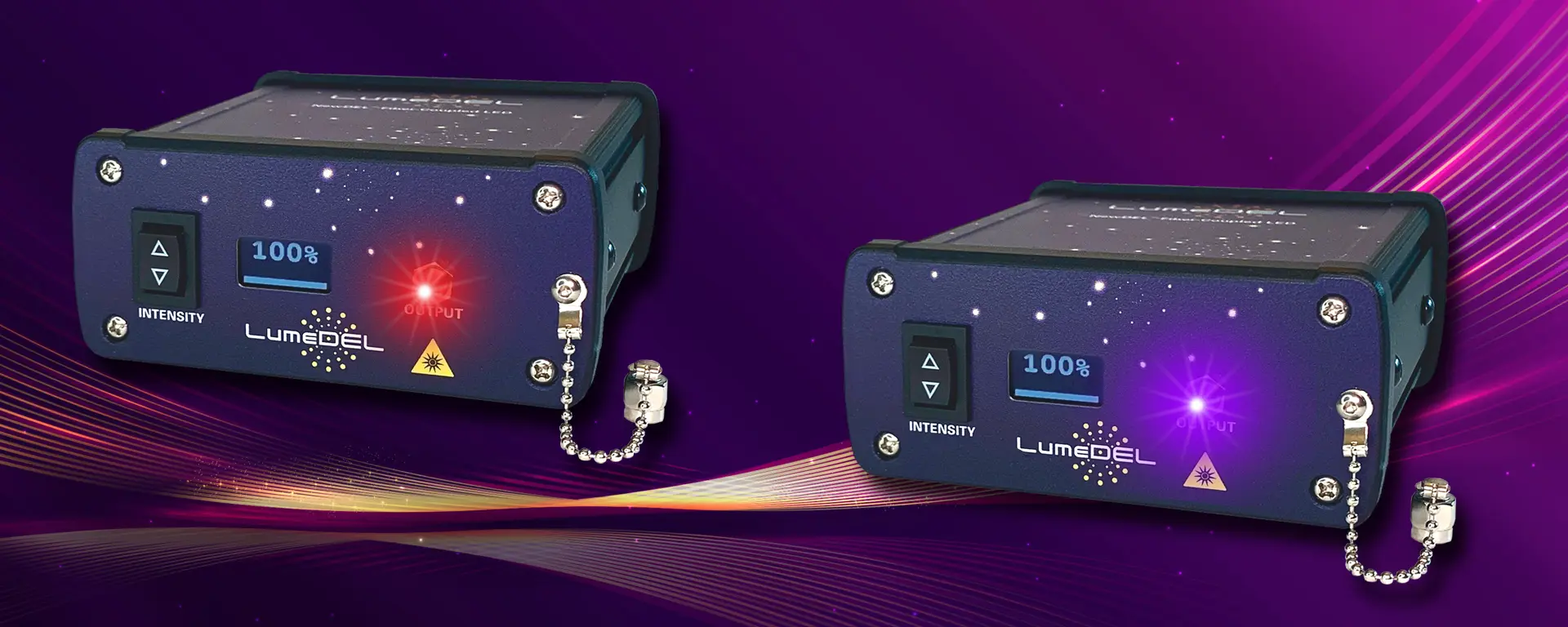

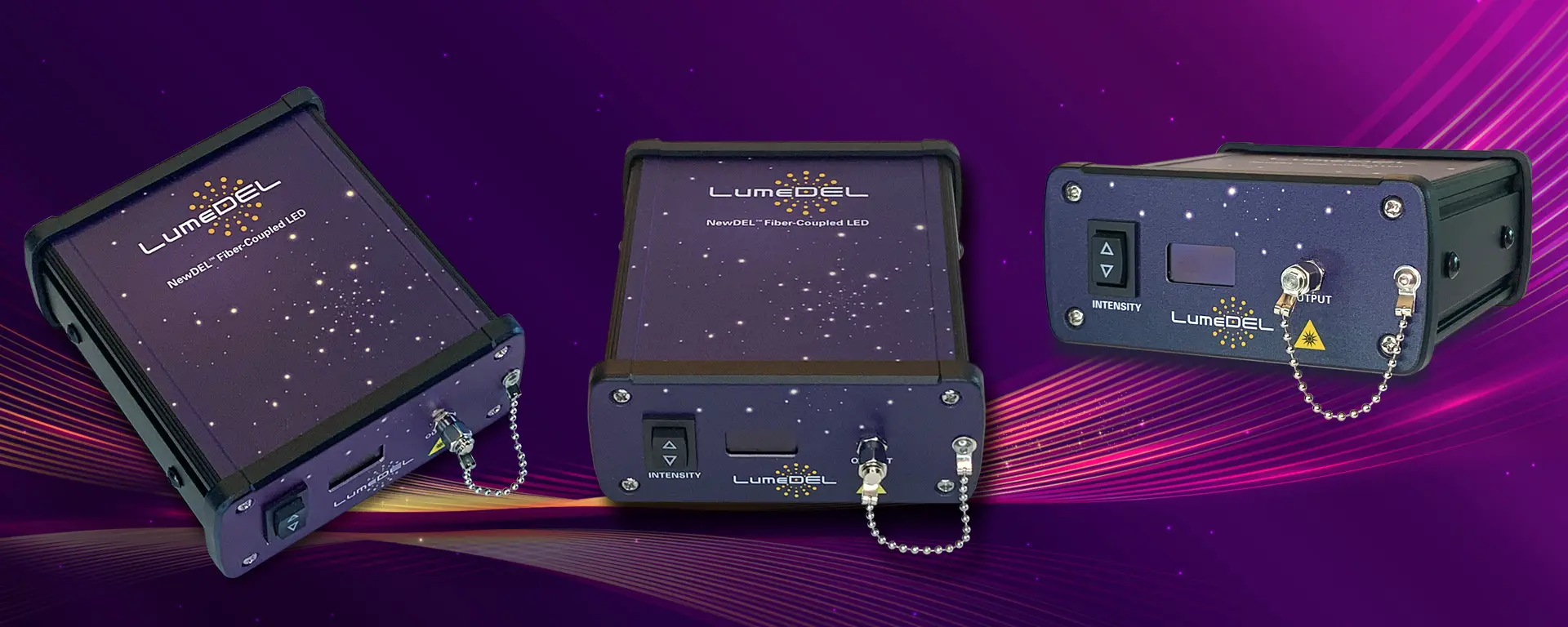

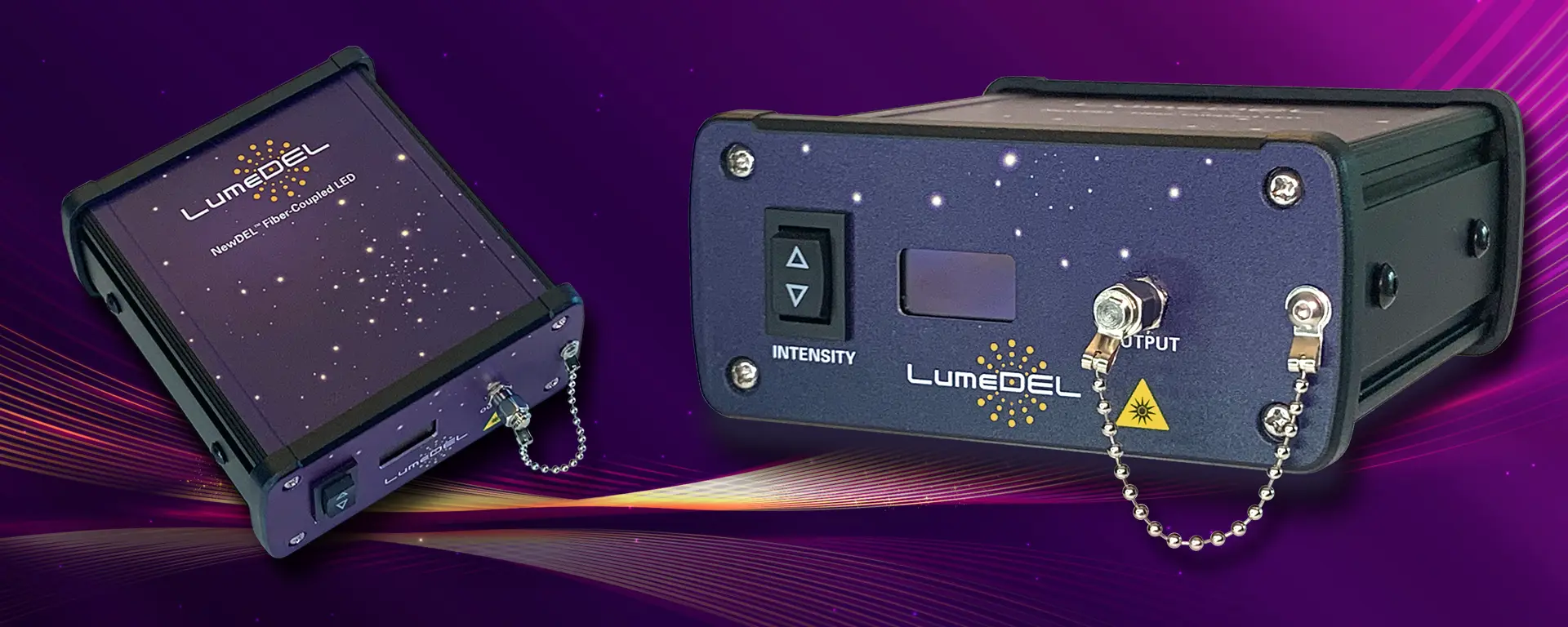

LumeDEL offer a range of accessories to complement and enhance their NewDELTM fibre-coupled light emitting diode systems:-

Fibre Patchcords Group

  • Fibreoptic Patchcords
  • Collimating Lenses
  • Inline Filter Holders
  • Mounting Hardware
  • Cables
  • Power Adapter

Fibreoptic Patchcords

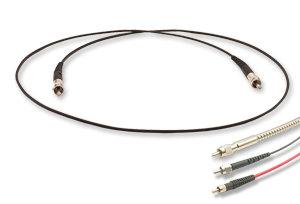

LumeDEL fiberoptic patch cords are fibre optic cables terminated with fibre optic connectors on both ends.



The most common connector used with multimode fibres is the industry-standard SMA 905 which allows users to interface with NewDEL light sources along with the full range of accessories. FC connectors can be specified if required.



The standard patch cords are 1 metre length, single strand, multimode, step-index optical fiber with 1 mm core diameter. A choice of fibre-type can be selected according to the wavelength of the NewDEL light source and other desired characteristics. Upon request, LumeDEL can provide smaller core diameters and various numerical aperture (NA) for fused silica fiber patch cords.



Plastic optical fiber (POF) patch cords FP63P and FP58P are more flexible and provide very high numerical aperture (NA) which provides the best optical coupling efficiency to LEDs to deliver maximum output power.



As POF is not suitable for UV transmission due to high absorption (and fluorescence) LumeDEL offers the FP50H patchcord featuring a High-OH content silica core for a spectral range of 300 nm to 1200 nm at NA 0.50.



For wavelengths below 300 nm, i.e. NewDEL models N275 (275 nm) and N280 (280 nm) LumeDEL offer the FP22U patch cord. This uses a hydrogen loaded, High-OH silica core to provide the best resistance to solarisation, a process whereby high-OH silica fiber can experience significant transmission loss when exposed to UV radiation. The FP22U can be used for other UV wavelengths (<400nm) and can offer both superior internal transmission and prolonged performance, providing the NA 0.22 is acceptable.



FP63P FP58P FP50H FP22U

Numerical
Aperture

0.63 0.58 0.50 0.22

Spectral
Range

350 - 850 nm 350 - 850 nm 300 - 1200 nm 250 - 1200 nm

Core
Material

Polymer (PMMA) High Temperature
Polymer (PPMA)
High-OH Silica UV-Resistant
High-OH Silica

Cladding
Material

Fluorinated
Polymer
Fluorinated
Polymer
Hard
Polymer
Doped
Silica

Jacket
Material

Cross-linked PE Cross-linked PE PVC Stainless Steel

Jacket

Diameter

1.3 mm 2.2 mm 3.8 mm 3.0 mm

Operating

Temperature

≤ 85°C ≤ 105°C ≤ 85°C ≤ 80°C



 For more information and pricing please contact APT to discuss your application.
