The ASIC combines everything needed for ToF measurements into one chip requiring a single 5V supply:-



  • 32-pixel Avalanche Photodiode (APD) array
  • Reference pixel for system health monitoring
  • Regulated charge pump for APD bias
  • Two laser drivers
  • Factory calibrated clock source
  • All digital PLL 400MHz
  • Logic for timing and integration
  • 128bit EEPROM
  • Temperature sensors
  • Frame based interaction via Serial Peripheral Interface (SPI)

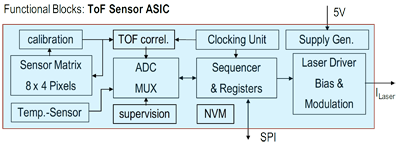

Custom ASIC building blocks
